THE WORLD INNOVATION!

GEDA BatteryLadderLIFT

+++ Special product +++

What is it?

To summarise in just a few words: The GEDA BatteryLadderLIFT is a compact lift to transport a wide range of different materials.

Nothing unusual in that, but the real highlight is that thanks to state-of-the-art battery technology the device operates totally wirelessly. With just one touch of a button a manual winch transports a wide range of materials via a ladder system to heights up to 10 m. The remote radio control sets the compact device in motion then the GEDA BatteryLadderLIFT easily sweeps 120 kg into the air. All that exhausting dragging up to those top floors is now consigned to the past!
Of course there are still many other unique features which make the GEDA BatteryLadderLIFT an absolute highlight.

Who needs it?

…That's easy – Everyone!

Whether for tilers, decorators, window producers, joiners, removal companies, DIY enthusiasts and and and… the GEDA BatteryLadderLIFT is the ideal transportation tool for all those materials that have to be transported upwards quickly and safely.

Why GEDA? / Why the GEDA BatteryLadderLIFT?

With just one touch of a button all kinds of materials are easily transported along the façade, without that tiresome cable spaghetti, leading to faster, smoother construction. Too good to be true? Not at all!

The GEDA BatteryLadderLIFT is THE new kid on the block in compact material hoists. Assembled in a flash by only one person in less than five minutes, the new lift from GEDA uses its powerful 24 V/10 Ah li-ion-battery drive to transport all kinds of materials up to 120 kg. So with just one touch of a button the practical remote radio control sets the compact device in motion from 0 to 15 m/min. Whether the project is a restoration or a new build site, it can be used in virtually every situation.

And last but not least the GEDA BatteryLadderLIFT scores due to the experience of its inventor since GEDA products have been setting new standards in height access technology on construction sites for nearly nine decades. Not without reason are GEDA construction and industrial hoists found on construction sites in over 80 different countries. The GEDA BatteryLadderLIFT is the perfect complement to the small units range and with the battery technology is introducing a new generation of height-access technology.

That´s what makes GEDA unique. Visit our Website.

Highlights

circle
close

Robust webbing

circle
close

Limit switch bar for even more safety

circle
close

Compact, high impact-resistant plastic winch housing protects the electric motor

circle
close

Mounts for load platform: Fast, tool-free installation or exchange of load platforms using a click system

circle
close

GEDA LIFTLadder design: a traditional, robust ladder with a guide profile for a safe and secure assembly and a smooth trajectory of the BatteryLadderLIFT winch

circle
close

Powerful 24 V / 10 Ah lithium-ion battery made in Germany

Capacity display via LED

circle
close

Remote radio control included as standard

circle
close

WLAN control via mobile app

circle
close

No tools at all are required to assemble the GEDA BatteryLadderLIFT

circle
close

With a ladder length of 4.50 m the assembly time for one person is about 5 minutes


circle
close

Stable platform design

circle
close

High-quality cathodic dip paint coating

circle
close

Rear wall foldable by 90° for bigger support surface

circle
close

High-quality cathodic dip paint coating

circle
close

Stable platform design

High impact-resistant plastic supports

circle
close

Flexible adjustment of platform via telescopic tube

circle
close

Rear wall foldable by 90° for bigger support surface

circle
close

High-quality cathodic dip paint coating

circle
close

Stable chassis smooths both the transportation of the winch and the load platform and also of loads on the construction site

circle
close

Flexible adjustment of platform via telescopic tube

circle
close

Pluggable side clamp to increase support surface

circle
close

Stable platform design

High impact-resistant plastic supports

circle
close

Lightweight aluminum construction

circle
close

Adjustible rubber buffers that adapt to

individual panel dimensions

circle
close

Rubber profiles for additional protection

circle
close

Belt holder for safe strapping with a tension belt


circle
close

Robust ladder base secures the ladder in place

circle
close

Usable as a stepladder or lean-to ladder – made in Germany

circle
close

Stable and hard-wearing ladder links

circle
close

Robust ladder base secures the ladder in place

circle
close

Stable and hard-wearing ladder links

circle
close

Usable as a stepladder or lean-to ladder – made in Germany

circle
close

Robust ladder base secures the ladder in place

circle
close

Extension ladder

circle
close

Quick-release connections for a safe and tool-free connection of the ladder modules to reach the usage height required

Technical Data GEDA BatteryLadderLIFT



How it works

The installation
The clever GEDA LIFTLadder System

Always the right combination – by cleverly combining the support and/or the lean-to ladder using the convenient ladder connection kit, progressively adjustable heights from 2.2 m up to 10 m can be achieved.
Even when the GEDA BatteryLadderLIFT is not needed, the versatile robust ladder can be used as a traditional construction site ladder. All ladders in the GEDA LIFTLadder system stand out due to their unique “Made in Germany” quality.

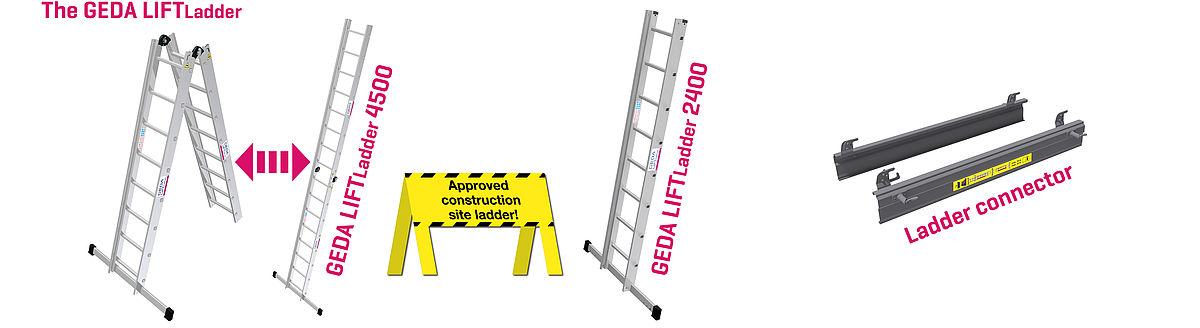

The smart GEDA LIFTLadder System consists of:

  • Fig. 1: The GEDA LIFTLadder 4500 can be used as a stepladder or as a
    lean-to ladder
  • Fig. 2: The GEDA LIFTLadder 2400 extension ladder
  • Fig. 3: Ladder connector to flexibly and smoothly reach lifting heights of
    10 m
left right

Questions? Suggestions?

Akku Lift - Address

GEDA GmbH
Mertinger Straße 60
86663 Asbach-Bäumenheim

Akku Lift - Phone

Phone +49 (0) 906 9809-0
Fax +49 (0) 906 9809-50

Akku Lift - Mail

info@geda.de

In action




FAQs

How many people are required to assemble the GEDA BatteryLadderLIFT?
For common assembly heights it can be assembled by one person.

How much time is required to assemble the GEDA BatteryLadderLIFT?
With a ladder length of 4.50 m (corresponds to the GEDA LIFTLeiter 4500/stepladder) the assembly time for one person is about 5 minutes.

What energy source is required for the radio control?
The radio control requires three standard AAA batteries.

Where is the identification plate located?
The identification plate is installed in the battery compartment. When the batteries are removed the identification plate becomes visible.

Is there a replacement battery?
Batteries are in principle available as accessories.

What is the operating life of the battery?
Example 1: 50 runs each of 50 kg to 10 m lifting height correspond to 2.5 t load capacity per battery charge
Example 2: 30 runs each of 120 kg (full load) to 10 m lifting height correspond to 3.6 t load capacity per battery charge

Can the ladder only be used as a GEDA LIFTLadder?
The GEDA LIFTLadder scores highly with its 3in1-Function: The ladder can be used as a stepladder, lean-to ladder and LIFTLadder in combination with the GEDA BatteryLadderLIFT.

How must the GEDALIFTLadder be secured?
The GEDA LIFTLadder must be duly secured for safety reasons.

Are any special tools required to assemble it?
No tools at all are required to assemble it.

How many parts does the GEDA BatteryLadderLIFT consist of?
For an installation height of 4.50 m the following components are required: Ladder, winch, platform, head section and radio control.

How is the weight of the components?

Base unit 31 kg
GEDA LIFTLadder 4500 19 kg
GEDA LIFTLadder 2400 9,7 kg
Ladder connector (set) 7,6 kg

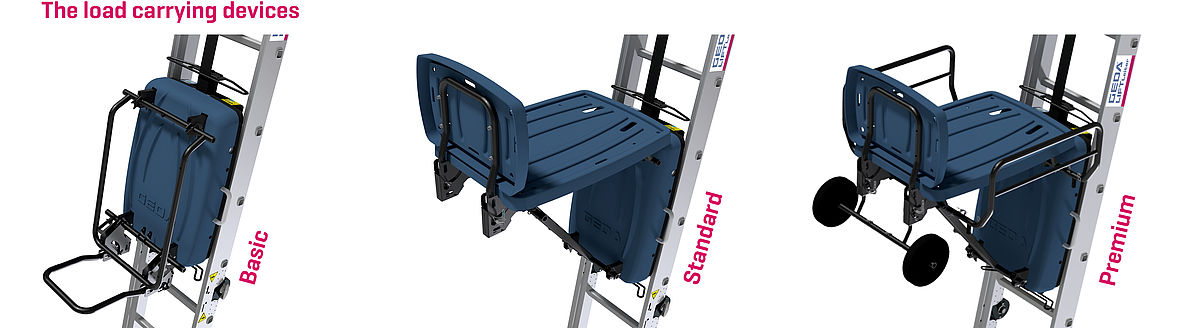

Load carrying device „Basic“ 5,5 kg
Load carrying device „Standard“ 10 kg
Load carrying device „Premium“ 17 kg
Head section 2,3 kg
Battery 1,8 kg
Battery charger 0,7 kg

Are there any tests neccessary?
The GEDA BatteryLadderLIFT winch must be subjected to an annual "country specific accident prevention regulations" test. The GEDA LIFTLadder has to be tested as a conventional ladder.

How is the GEDA BatteryLadderLIFT to handle in cold?
In order to get the full capacity of the battery, the device has to be driven upwards and downwards for one to two times. Thereby the full load carrying capacity of 120 kg can be ensured.

I have a device with wireless control. Where can I get the app?
The app for controlling the GEDA BatteryLadderLIFT via WiFi is available on Google Play and Apple App Store for download.
